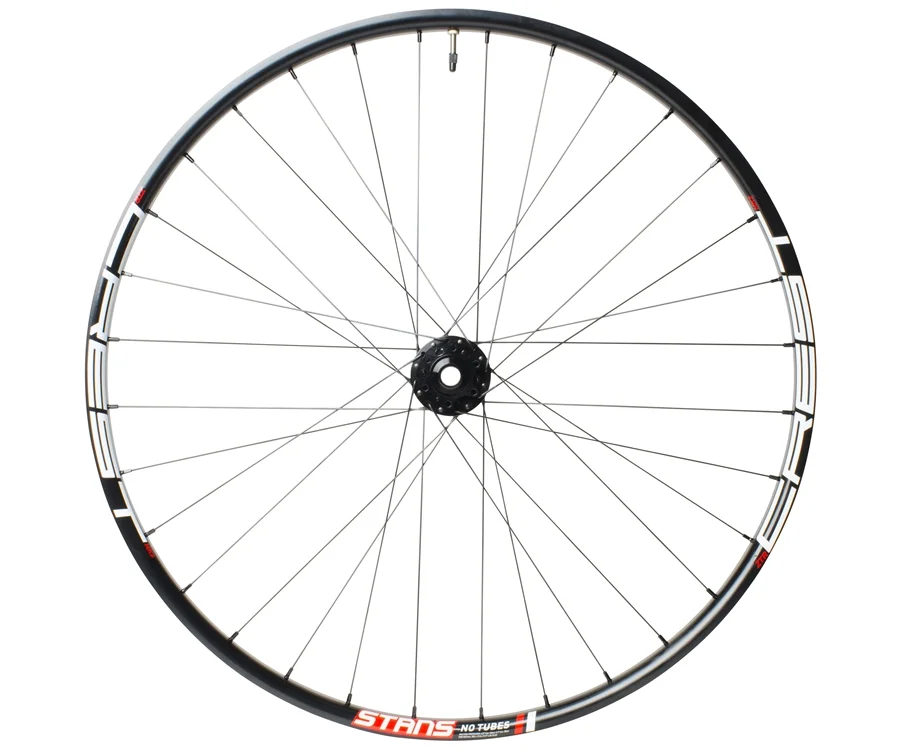

Build Specs:

• DT350 hubs
• 32 spoke
• 3 cross lacing
• Double butted spokes

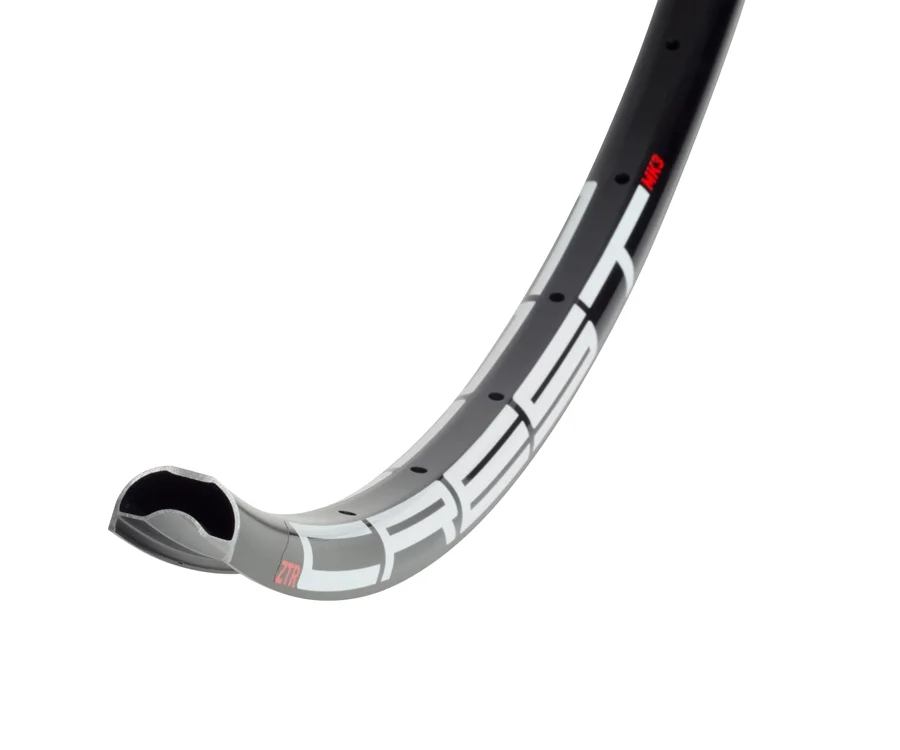

The legendary Crest is even better for 2016. Wider and even lower profile, the new Crest MK3 sheds weight for faster acceleration and climbing. WideRight 23mm internal width increases tire volume for improved stability with wider tires. Inspired by our carbon technology, the entirely new rim shape adds strength and virtually eliminates the chance of a tire pinch flat. Refined over the past 15 years, our Bead Socket Technology offers the most trusted tubeless seal in the business, making the Crest MK3 the best choice for lightweight, tubeless XC performance.

Rim Internal Width: 23.0mm
Rim External Width: 26.3mm
Rim Depth: 15.8mm
Material: 6069 Aluminum Alloy
Brakes: Disc only
Rim Weight: 326g (26") / 341g (27.5") / 364g (29")
ERD: 542mm (26") / 567mm (27.5") / 605mm (29")
ETRTO: 559x23.0 (26") / 584x23.0 (27.5") / 622x23.0 (29")
Color: Black
ISO: 26"x26.3mm / 27.5"x26.3mm / 29"x26.3mm
Tape: 25mm
Valve: 35mm Presta
Spoke Tension: 95kgf (930N)
Max Rider Weight: 190lbs (86 kilo)
Max Pressure with 2.0" Tire: 40psi
Max Pressure with 2.25" Tire: 38psi
